Concrete Sleeper Retaining Walls Brisbane

Under Schedule 1 of the Queensland Building Regulation 2021, a retaining wall generally needs no building approval only if the total height of the wall and the fill or cut it retains is no more than 1 m, there is no surcharge loading over the wall's zone of influence, the wall is at least 1.5 m from a building or another retaining wall, and it is not part of fencing for a regulated pool. Height is measured from finished ground level beside the footing, not counting the footing. Anything outside those conditions needs building approval through a building certifier, and planning approval may also apply on some sites. For advice specific to your block, we can connect you with an installer who works with qualified certifiers and engineers.

Published Brisbane price guides put installed concrete sleeper retaining walls from around $300 per square metre of wall face for a simple, accessible low wall, rising to $1,000+ per square metre for taller, engineered or hard-to-access walls, depending on scope. Height, access, excavation, drainage, engineering and approvals all affect the final price, so treat these figures as indicative only. Concrete sleeper walls usually cost more upfront than treated pine.

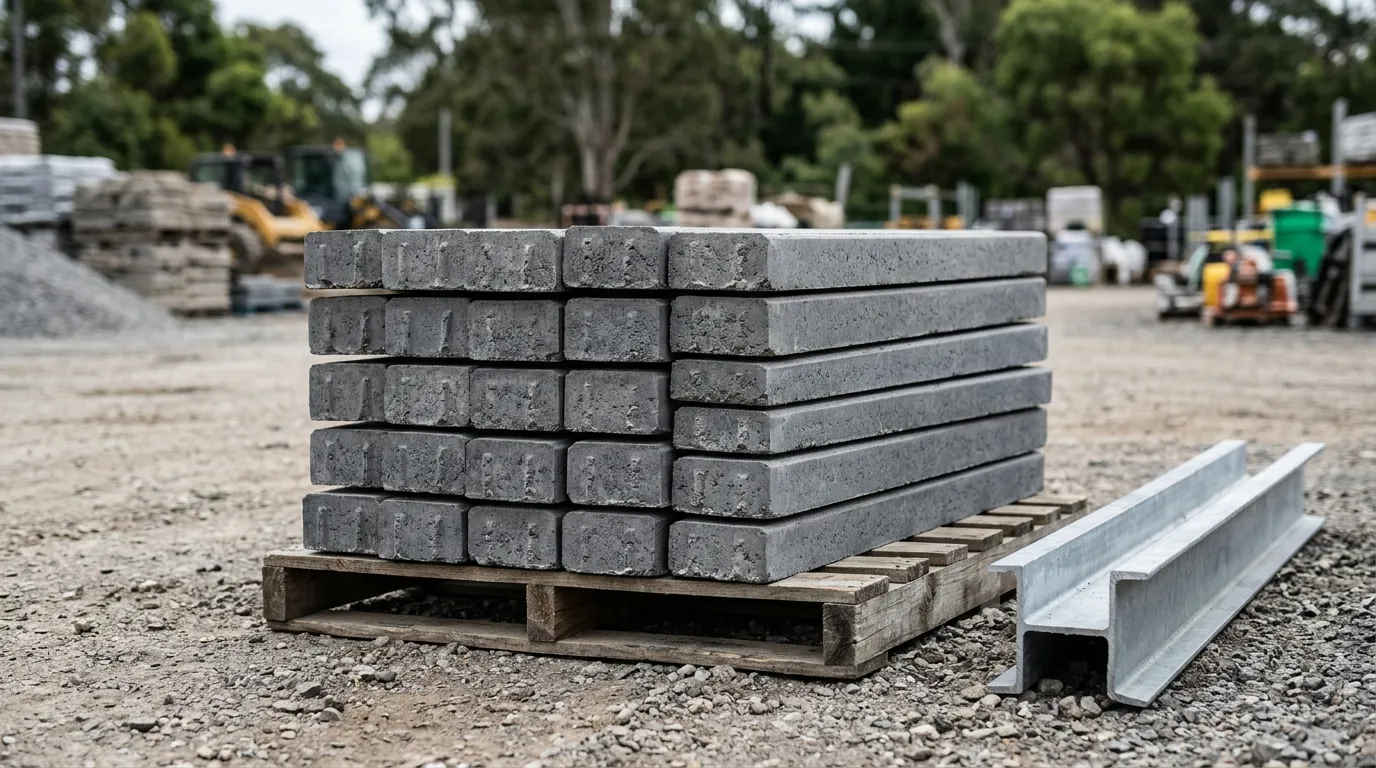

It depends on the manufacturer and size. A 2.0 m x 200 mm x 75 mm concrete sleeper weighs about 72 kg, and a 2.4 m sleeper weighs about 83 kg at 75 mm thick or about 95 kg at 80 mm thick. Most installers handle them with two people or a sleeper grab.

Concrete sleepers cost more upfront than treated pine, and each sleeper is heavy (roughly 70 to 95 kg), so they need two people or lifting gear. The galvanised steel posts can corrode over time if drainage is poor or the soil is aggressive. Sleepers come in straight modular runs, so curves need a segmented layout. Walls outside the 1 m exemption conditions need building approval and usually engineering, which adds cost.

Not every wall does. Walls outside the 1 m exemption conditions need building approval and usually an engineered design. In Queensland, professional engineering services such as a site-specific retaining wall design or certification must be carried out by a Registered Professional Engineer of Queensland (RPEQ), or under the direct supervision of one. If your wall needs a design, we can connect you with an installer who can arrange a qualified engineer.

In Queensland, individuals and companies must hold a QBCC licence to carry out building work valued over $3,300, including labour, materials and GST. Retaining walls fall within QBCC licence classes such as Builder restricted to structural landscaping and Structural landscaping (trade). Ask any installer for their QBCC licence details before you sign a contract.

Sometimes. Under the Queensland Home Warranty Scheme, a retaining wall valued over $3,300 that supports a home or related roofed building is covered. A free-standing retaining wall that does not support a home or roofed building is not insurable on its own, so defects in it are not covered, although it is covered for non-completion when it is part of a larger insured contract. For advice on your situation, we can connect you with an installer who can confirm whether cover applies to your wall.

Yes, but the heights add up. In Brisbane, fence height includes any combination of screens, fences and retaining walls, and building approval is needed when the total is more than 2 m above the natural ground surface. If you are planning a Colorbond or timber fence on top of your wall, mention it in your enquiry so it can be included in the quote.

Concrete sleepers do not rot and are not eaten by termites, and many manufacturers quote a design life of around 50 years. The galvanised steel posts are usually the weak point, as they can corrode over time with poor drainage or wet, aggressive soils, so post coating and drainage matter for the life of the wall.

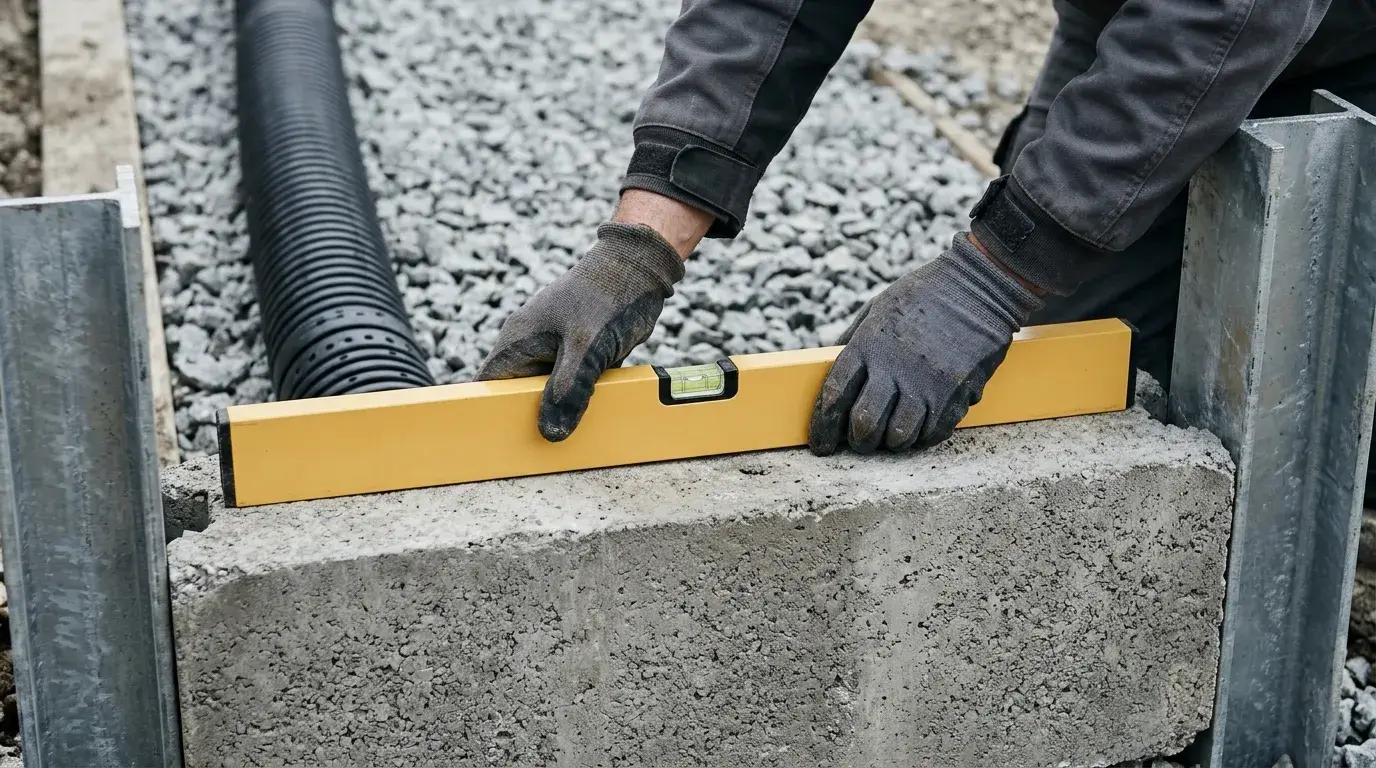

Drainage behind a concrete sleeper wall typically includes slotted ag pipe at the base, free-draining gravel backfill and geotextile fabric. In Brisbane, the wall, its footings and subsoil drainage should sit wholly within your property, with water directed to a lawful point of discharge rather than onto neighbouring land.

As a rule of thumb, post holes are dug roughly as deep as the wall is high, for example around 1 to 1.1 m deep for a 1 m wall. The final hole depth, hole size and post size are set by the manufacturer's design tables or an engineer to suit your soil and loads.
